옥외 LED 전광판 철골 구조물: 도면 체크리스트

Start with the equipment layout

Use the selected standard 960 광장 cabinet drawing. Mark columns, rows, front orientation, connection points and the boundary between active image and trim. For example, five 960 mm cabinets span 4.80 m of active width. A five-metre architectural opening is a different dimension.

Mark the interfaces that must stay accessible

Draw one cabinet in section at an edge and another at an interior position. Show which way the module leaves the face, where the control box opens and where cables enter. A support member that clears the cabinet outline can still obstruct a latch or the path of a replacement power supply.

Separate design support from the steelwork order

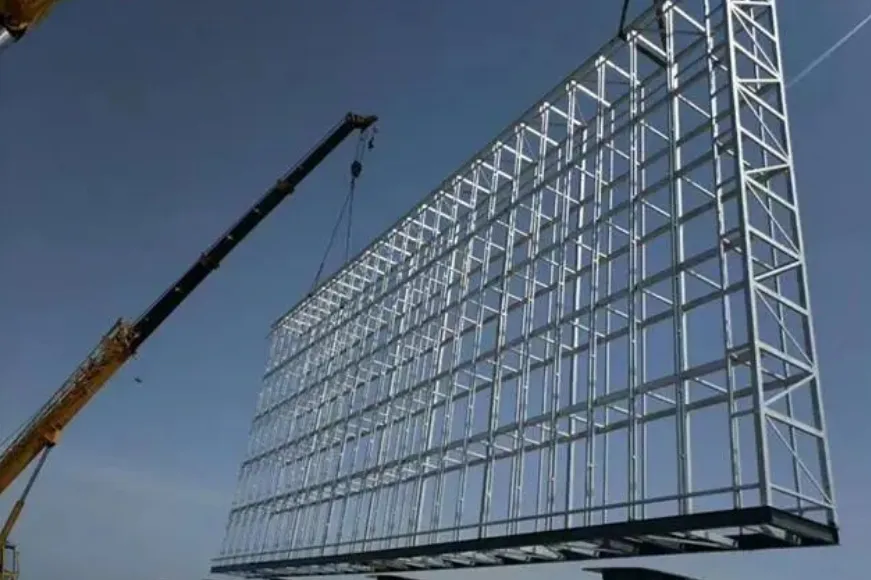

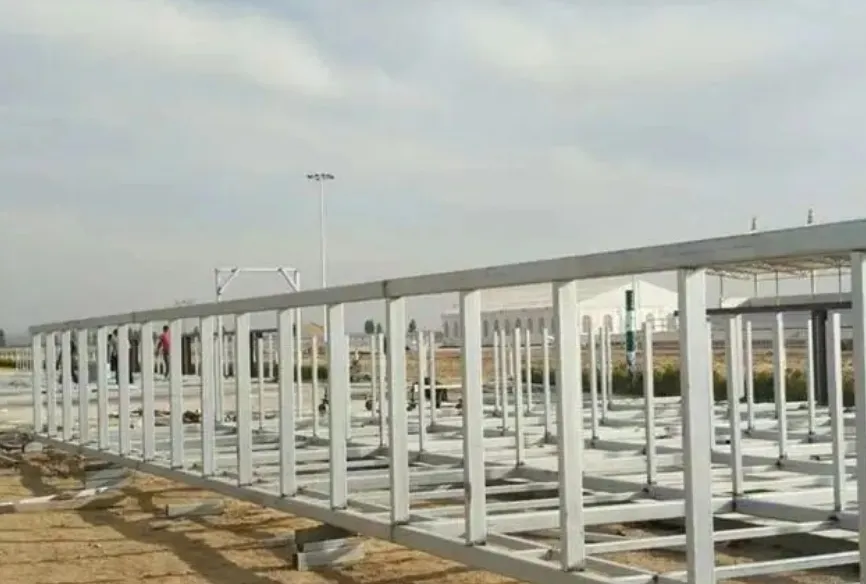

DOIT VISION provides product drawings, steel-structure CAD drawings, wiring diagrams and installation instructions for outdoor display projects. Installation plates and screws are identified by item and quantity on the order. Put fabrication, local structural review, transport of the steel and site erection on separate scope lines with a named responsible party.

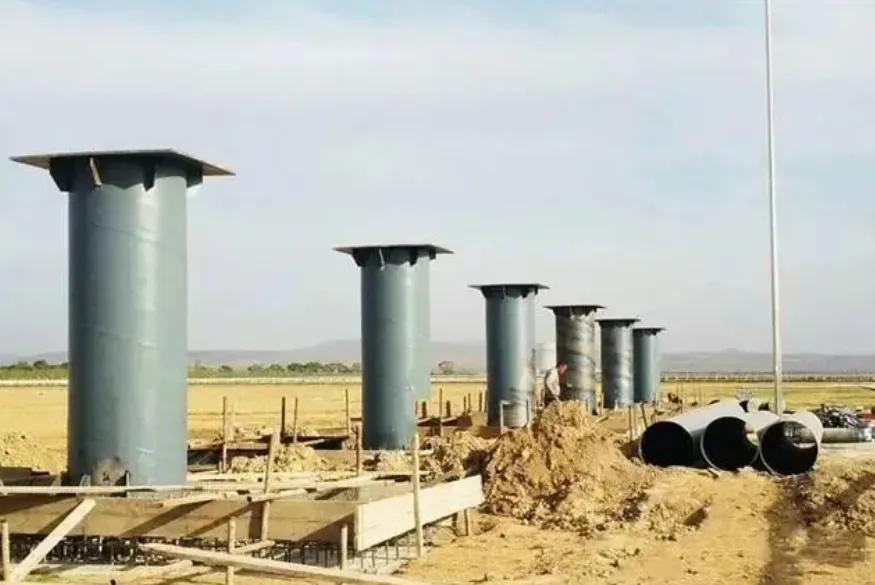

The site structural professional needs the actual building or foundation information and local design conditions. Cabinet weight is one input to that review. A fixed percentage added to display weight cannot establish the capacity of the complete support.

Release one drawing set to all parties

Put the display model, layout revision and orientation on the frame, power and cabinet drawings. Before fabrication, compare hole locations, clear openings and cable entry against the same revision. If the cabinet changes, have the fabricator mark affected interfaces before authorising work on the revised set.

주제

옥외 LED 전광판 철골 구조물: 도면 체크리스트

선택

The first drawing a billboard fabricator needs is the approved cabinet layout. It fixes the active dimensions, mounting interfaces and service side. A price based only on screen area leaves the fabricator to guess where the display attaches and how parts will come out later.
